The Image System

  • Overview

    Jamroom contains a powerful system for manipulating the images in the system.

    Here we will look at all the locations images can be entered into the system and how you can manipulate images that exist in the system to give your site the look you are after.
  • Getting Images Into the system

    There are a few ways to get images into the system.

    * via the /img folder in a skin
    * via the /img folder in a module
    * via the image over-ride in the ACP on a modules IMAGES tab
    * via the image over-ride in the ACP on the skins IMAGES tab
    * via the "Additional Images" upload system in the ACP
    * via the image upload button on a modules form, eg:the gallery form.

    Lets take a look at these locations now:
  • * via the /img folder in a skin

    Inside every skin that is created for Jamroom you will find a folder named /img.

    /img is a special folder that allows any image in there to be picked up by the system and over-ridden by the admin users.

    Skin designers can put images into any folder they like but if they choose to use /img then the admin users will gain this extra functionality.

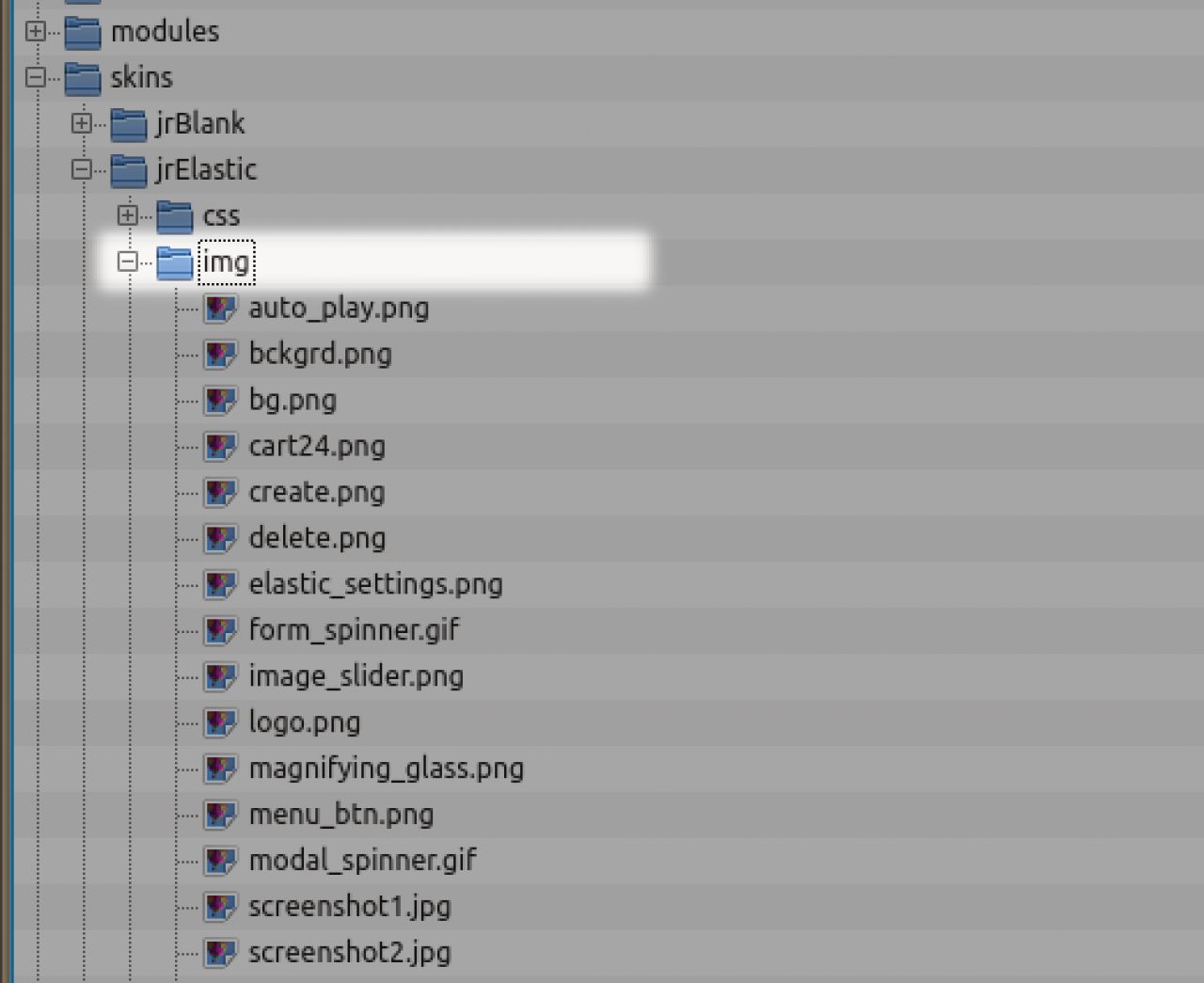

  • screenshot of the /img folder in the jrElastic skin.
  • When the skin developer makes the decision to use the /img folder, the admin user will see those images on the IMAGES tab of that skin in the ACP.

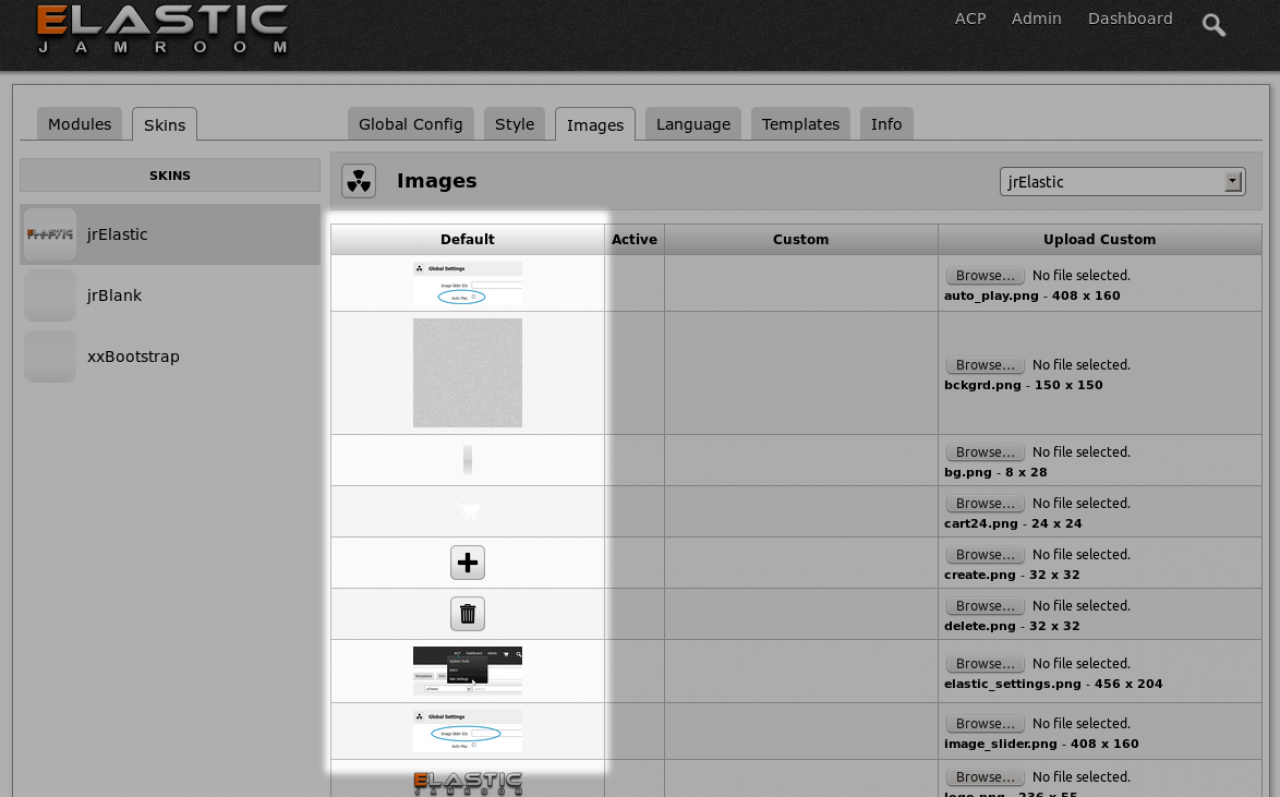

  • screenshot of the IMAGES tab on the elastic skin. Visible are all the images in the /img folder of the jrElastic skin.
  • * via the /img folder in a module

    Just like the skins, the /img folder in modules also provides the same functionality.

    Any image that is placed in the /img folder of a module is made available to the admin to over-ride via the ACP.

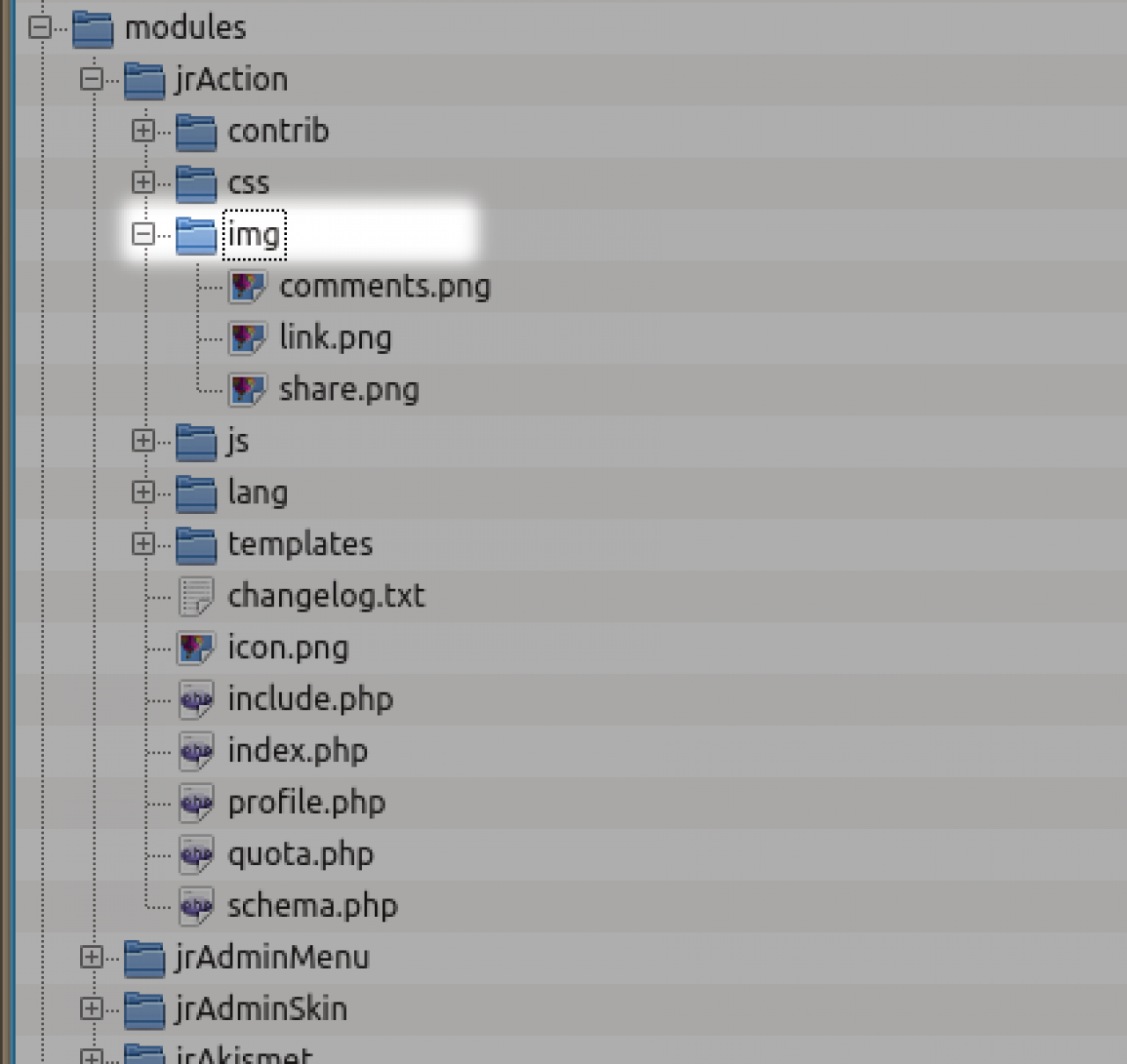

  • screenshot of the /img folder of a module.

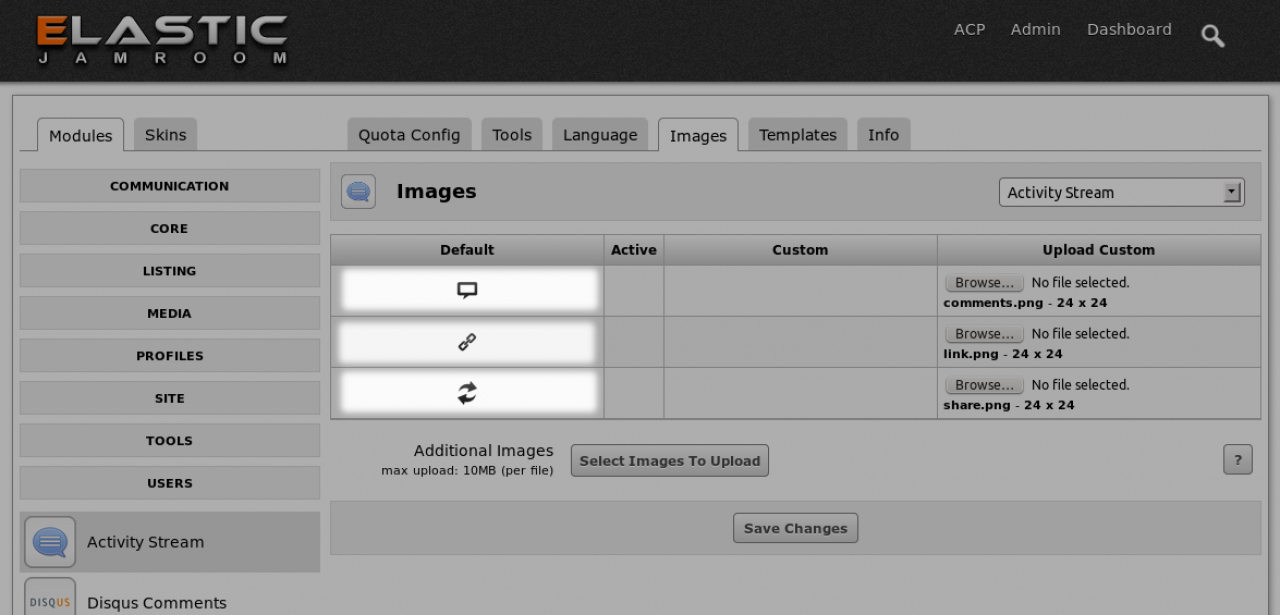

  • screenshot of the module IMAGES tab in the ACP. It correlates to the /img folder pictured above.
  • * via the image over-ride in the ACP on a modules IMAGES tab

    From the IMAGES tab on either the modules or the skins, the admin user is able to over-ride the default images of the site without having to alter the skins themselves.

    From the IMAGES tab the admin user can click the BROWSE button inline with any image they want to override and select a new file from their pc to upload to the system.

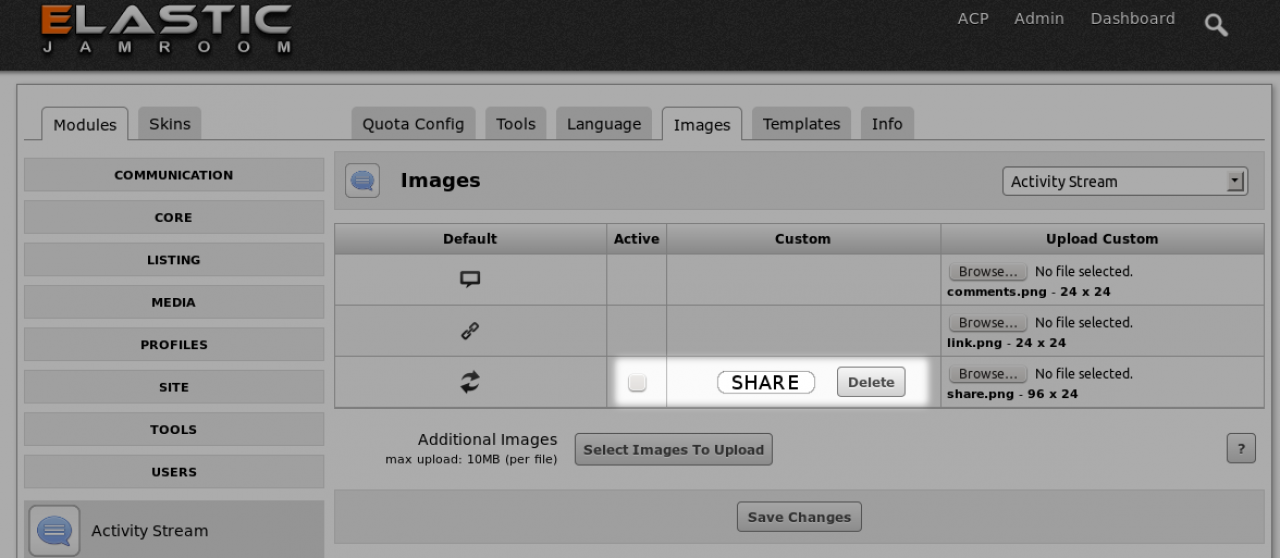

  • screenshot of an image uploaded ready to be used to override the default module image.
  • checking the checkbox to mark the override as active, then saving the changes will see that image used in all places where the original image was.
  • DEVELOPERS whenever the urge to use this URL
    $img_url = '/modules/YOUR-MODULE/img/filename.png';
    hits you, STOP!.

    The url you want is:
    $murl = jrCore_get_module_url('jrImage');
    $img_url = '/' . $murl . '/img/module/YOUR-MODULE/filename.png'

    This will allow any images uploaded to the IMAGES tab of your modules to work.
  • * via the "Additional Images" upload system in the ACP

    All of the locations where you can override existing images of either a skin or a module will also have another button that looks like this:

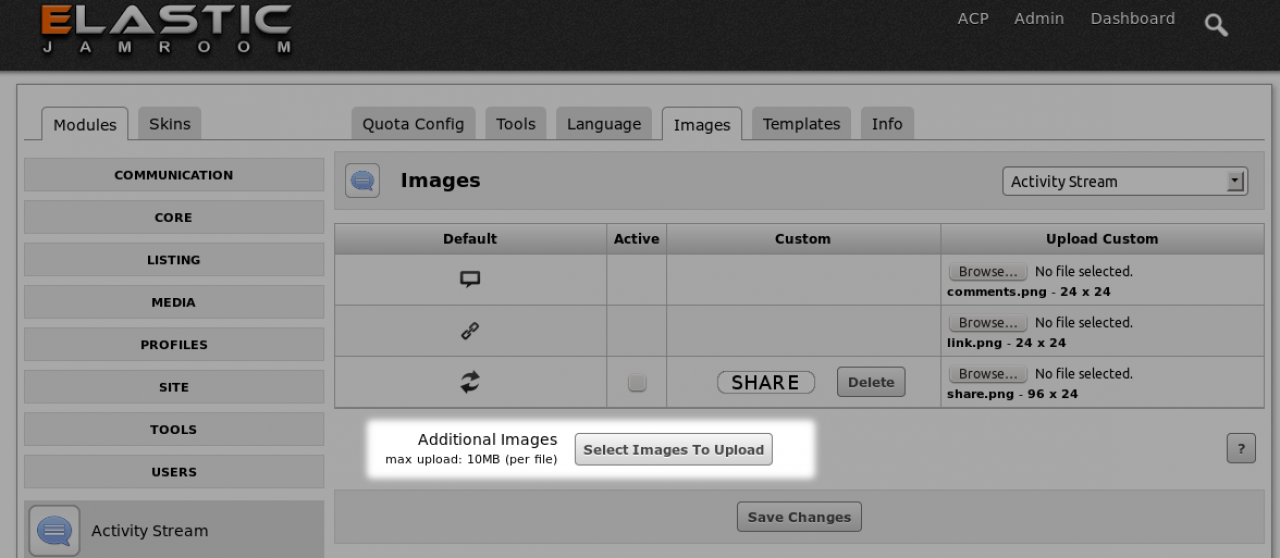

  • screenshot of the additional images section with the "Select Images To Upload" button visible.
  • You can use this button to upload multiple extra images to the location where you currently are.

    In this example we are on the IMAGES tab of the 'Activity Stream' (jrAction module).

    Any images uploaded will be associated with this location.

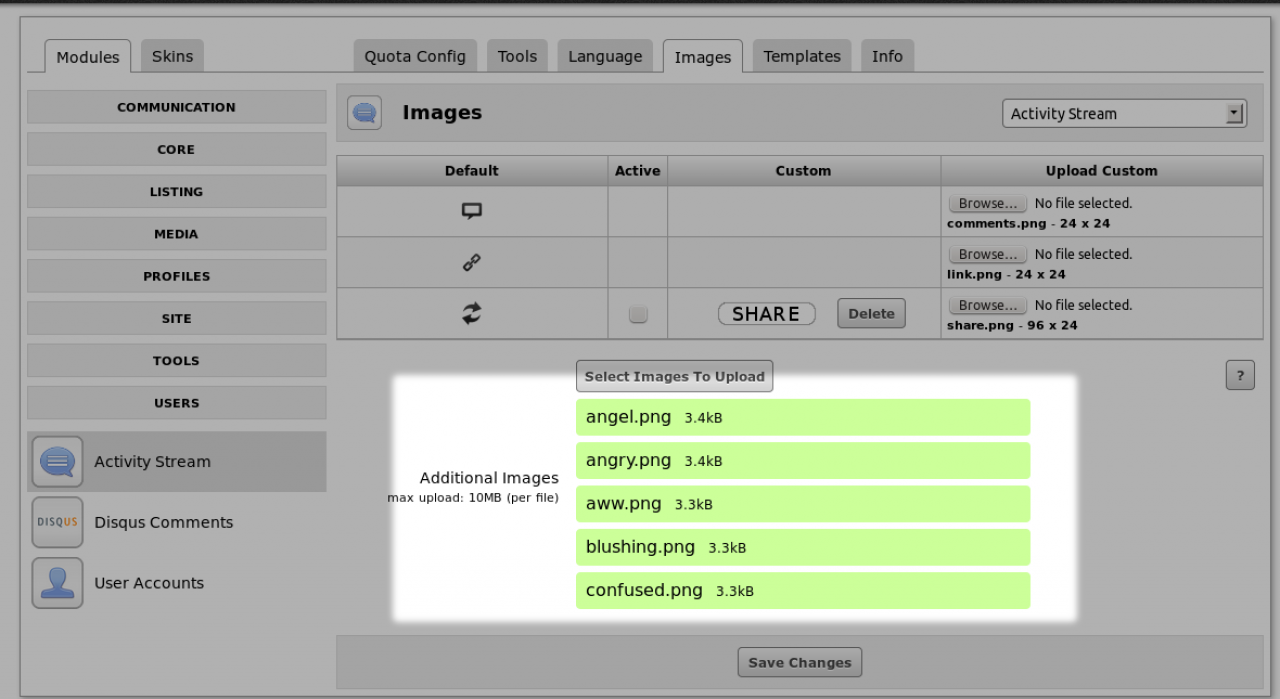

  • screenshot of multiple images being uploaded in one go.
  • Clicking "Save Changes" will enter these new images into the system.

    Once the images are entered into the system you can use them in your templates.

    The Options column will show you the template code to use to get the image you just uploaded.

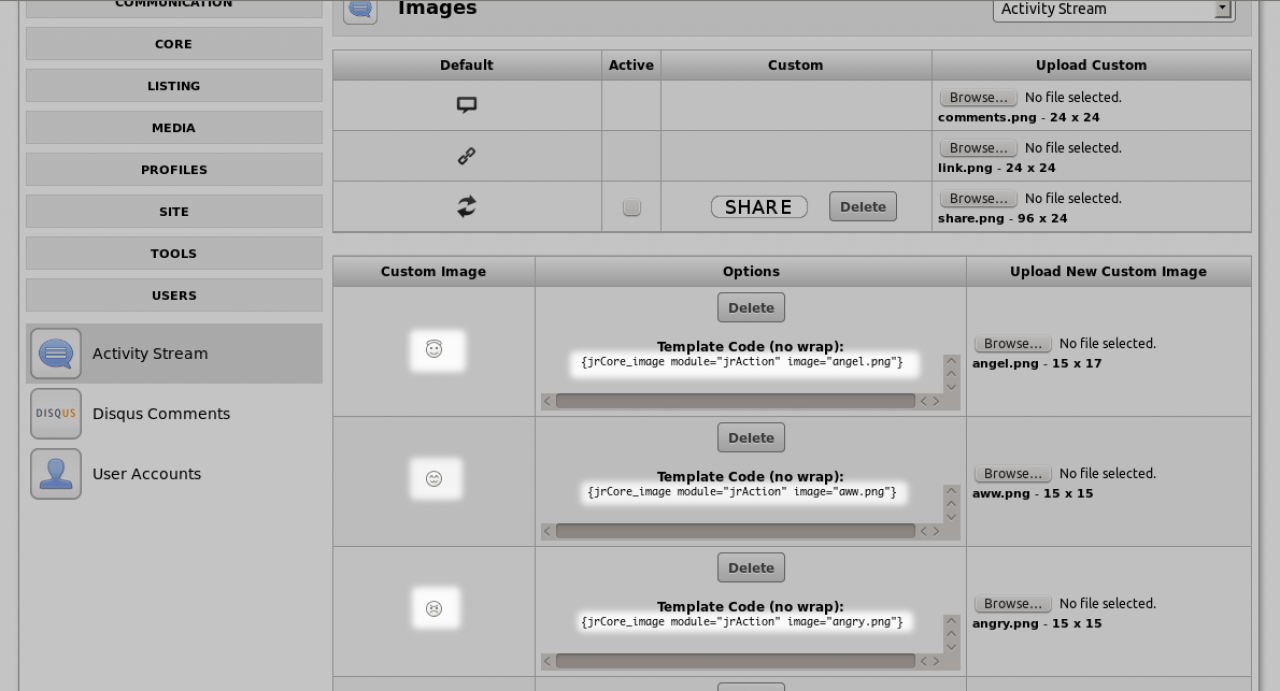

  • screenshot of the uploaded images and the code to use to get them out in the templates.
  • * via the image upload button on a modules form

    All of the images above are related to the skin design.

    These types of images are used to setup your site. But what about images that are uploaded by users and associated with content.....?

    These are slightly different, but still get access to all the power of the image system. They can be manipulated and resized in the same way as any of the images to date can be.

    Lets take a look at an example from the profile module (jrProfile).

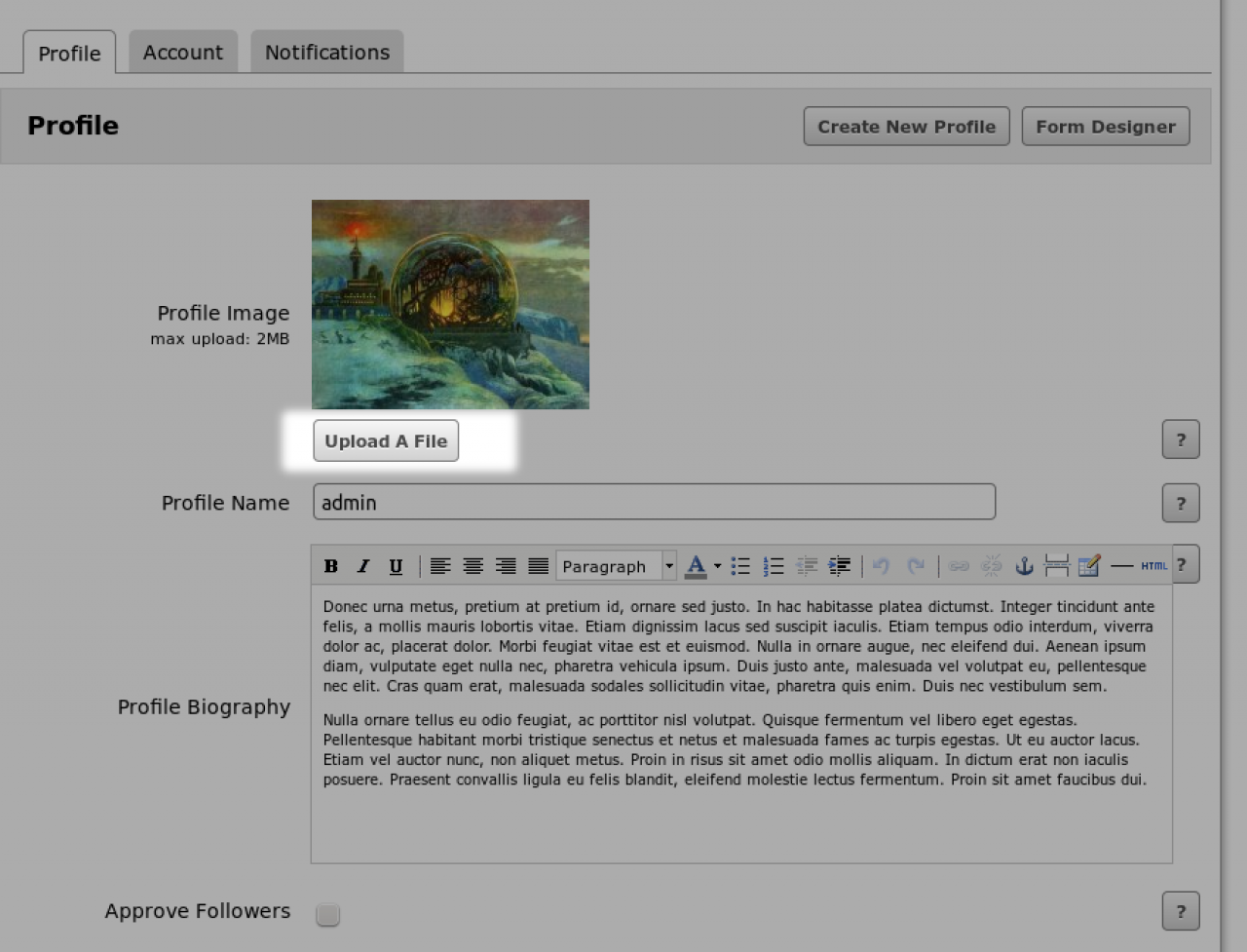

  • screenshot of image upload on an item.
  • Images associated with a particular item are uploaded in the same way as any other image on the site, however the way they are retrieved is slightly different.

    With the images from the skin and the images from the ACP we retrieved the image into the templates with the following code
    {jrCore_image module="jrAction" image="angel.png"}
  • however with images that are stored in the datastore along with the rest of the items details we use a different piece of code.

    To retrieve an image that belongs to an item, we need to pass in the items details too.

    For example:
    //for profile_id #5

    {jrCore_module_function function="jrImage_display" module="jrProfile" type="profile_image" item_id="5"}

    //or dynamically in a loop
    {jrCore_module_function function="jrImage_display" module="jrProfile" type="profile_image" item_id=$item._item_id}

  • using this syntax lets Jamroom know to look for the image from the datastore instead of the file system.
  • For Developers

    On top of the locations above that may be used by the site admins to change images, one thing you'll want to be aware of is the variable available to you to link to images from your CSS files.

    Take a look in elastic to see how its done. Particularly the header background image.

    The url to that looks like this:
    background:#333 url("{$jrElastic_img_url}/bckgrd.png");
  • That {$jrElastic_img_url} is replaced with a link to the image modules url that determines if the admin user has used the ACP to over-ride the image or not.

    You can also use:
    background:#333 url("{$jamroom_url}/skins/jrElastic/img/bckgrd.png");
  • but this will not allow over-rides to work. If the admin changes the image in the ACP and your CSS code is coded like the second example, the background image will not change.
  • Hopefully its obvious that {$jrElastic_img_url} is for the jrElastic skin. If your skin is called nnBreakdance then that url would be {$nnBreakdance_img_url}.
  • jrCore_image

    Function
    jrCore_image
    parameter
    type
    default
    required
    description
    module
    string
    -
    off
    an active module name. if not provided the image is looked for in the skin.
    string
    -
    on
    the name of the image to display
    height
    int
    -
    off
    the height of the image
    width
    int
    -
    off
    the width of the image
    alt
    string
    -
    off
    the string to use in the alt="" tag on the image
    title
    string
    -
    the string to use in the title="" tag on the image
    class
    string
    -
    the classes to attach to the generated image html
    style
    string
    -
    any inline css styling you want to add
    As explained above the jrCore_image function is for images that relate to the skin rather than user provided content.

    You can add extra parameters to the base call to extend how the image is output. These other extensions include things like, giving the image a title, giving the image an alt tag, giving the image height and width attributes along with adding class names.
  • jrImage_display

    Function
    jrImage_display
    parameter
    type
    default
    required
    description
    size
    string/int
    128
    off
    image size - must be one of: 24, xxsmall, 40, xsmall, 56, 72, small, 96, icon96, 128, icon, 196, medium, 256, large, 320, larger, 384, xlarge, 512, xxlarge, 800, xxxlarge, 1280. There is also an 'original' option to show the original image size, but it must be enabled in the ACP.
    type
    string
    -
    on
    the name of the datastore key. eg: profile_image, action_image, audio_image.
    item_id
    int
    -
    on
    the item_id of the datastore item to which this image belongs.
    module
    string
    -
    on
    the module that owns the datastore where the image is located
    crop
    string
    -
    off
    crop values are: auto, square, height, width, portrait
    As explained above jrImage_display function is for user uploaded content.

    Since the site administrators don't have as much control over what the user uploads as they do what they themselves upload, this function can use all of the parmeters defined above and also these extra parameters.

    This function is commonly wrapped int the {jrCore_module_function function to first check that it exits before running it. If the image module was disabled doing it like this prevents errors and allows the skin to show.

    {jrCore_module_function function="jrImage_display" ....
  • The 'original' image option is an ACP setting found at:
    ACP -> CORE -> IMAGE SUPPORT -> GLOBAL CONFIG -> BLOCK ORIGINAL SIZE

    So skin designers need to be aware that it may not be available as an option.
SteveX
23 Apr 2014 03:02:52AM @ultrajam:
If you use the crop parameter (auto, square, height, width, portrait), the resulting image will be square.

If you are setting a height on the image itself you may need to set width=false (or for a set width height=false).

Note that if you do set a height on the image, some of the jr skins apply height:auto; to all image elements in their css, so you won't see your fixed size image until you add another class or inline style to remove height:auto;
